Discussion Starter · #1 ·
I am in the process of scratch building a Tholian ship from TOS Trek. A few years ago I did the shuttlecraft Galileo with the engine effect similar to the Enterprise (I know it's not accurate but looks great). Also I have done the Aurora from the episode "Way to Eden" and the Tholian ship which I'm finishing up now.




·
Modeler's Brand
Joined
·
2,376 Posts
Those are FINE!


·
Registered
Joined
·
2,188 Posts
Wow...! Really nice stuff! I'd also like to see more pics--especially of the shuttlecraft. Love the engine lights!


·
Registered
Joined
·
243 Posts
Discussion Starter · #7 ·
Here is a video I took when I was finishing the thing up. This will give you some idea of the engines although I must say this really does not do it justice. The model (if I recall correctly) is about 22" long. I sure wish I had known about this site before I built it. I drew all of the plans myself mostly derived from whatever photos and screen-caps I could find. Anyway, here is the video:
[ame=http://s17.photobucket.com/albums/b64/fendert/?action=view&current=MOV01415.flv]
[/ame]


·
Registered
Joined
·
1,176 Posts
The engine lighting effect looks really great! I'm sure that is exactly what they wanted it to look like but were unable to do because of money or time or both.

Great job!


·
Registered
Joined
·
243 Posts
Discussion Starter · #13 · (Edited)

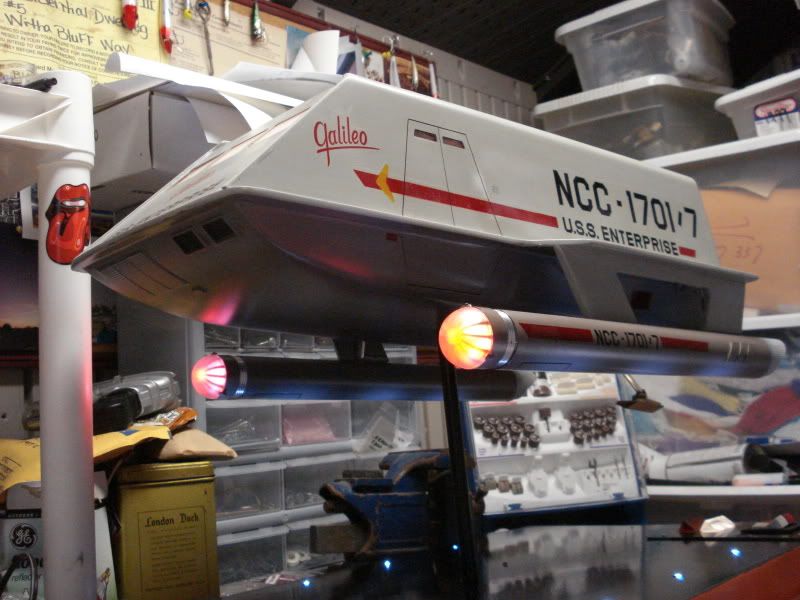

Thanks, yes from what I remember this is what I did for the shuttlecraft lighting. I used cold cathode for the back impulse engines. I used 6 warm white LEDs for the interior of the cabin. For the engine effect I used (if I remember correctly) a 24 rpm gearhead motor similar to the ones here:
http://www.73.com/a/0184.shtml

EDIT: Actually this is the exact motor I used although I bought it someplace else (and for a third of the price!):
http://www.surplustraders.net/speci...th=200&img_height=95&img_alt=PORTESCAP MOTOR
The motors themselves were great. They were reversable so they were perfect since the nacelles rotate in different directions.

In each engine I had 6 LEDs. Four orange LEDS which stayed on continuously and 2 additional tri-colored LEDs (red, blue & green) which go through a pattern. I did end-up having to play around with masking some of the LEDs to get the lighting right. Because of the cold-cathode everything is run off of a 12v DC system connected by a 1/4" plug like the MR Enterprise. It's nice because you can just lift the ship off of the stand; no hard connection.

I guess that's about it.


·
Registered
Joined
·
243 Posts
Discussion Starter · #15 · (Edited)
Together for the last time!

Not quite done but I snapped a few photos both together The most notable difference is the reduction in the width of the trench on the second.
